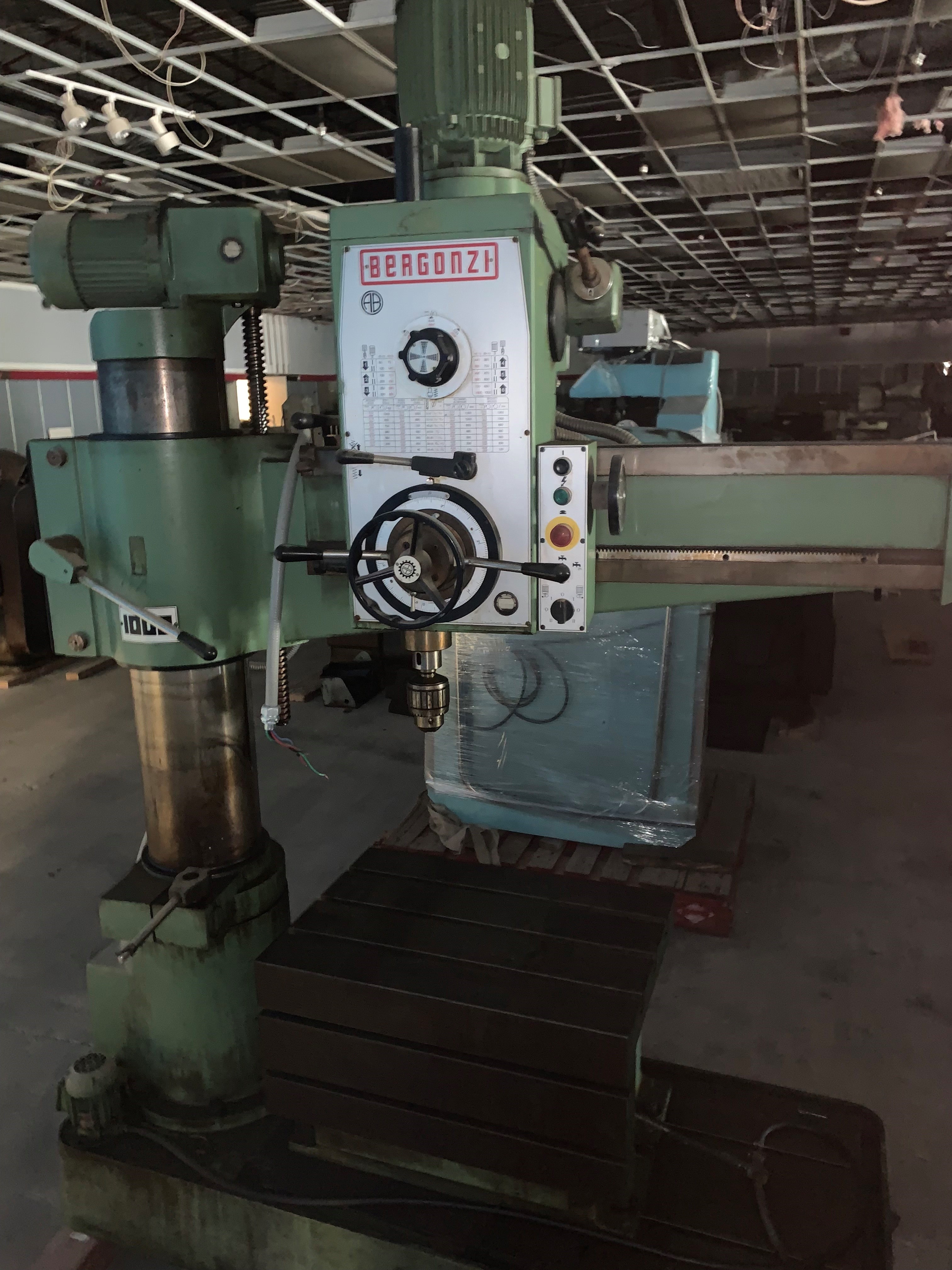

BERGONZI FS-1000 RADIAL ARM DRILL 3' X 8.5" #6320 #1

BERGONZI FS-1000 RADIAL ARM DRILL 3' X 8.5" #6320 #1

Arm Length: 3'

Column Diameter: 8 1/2"

Maximum Distance Spindle To Column Face: 39.4"

Head Travel On Arm: 19.7"

Vertical Arm Travel: 28.76"

Spindle Taper: No. 4 M.T.

Spindle Travel: 6"

Spindle Speeds: (12) 70 - 1,500 RPM

Quill Feeds: .004- .021 IPR

Drilling Capacity, Steel: 1-3/8"

Drilling Capacity, Cast Iron: 1 3/4"

Motor: 3 HP

Equipped With:

Power Elevation

Box Table

Coolant System

Drill Chuck
