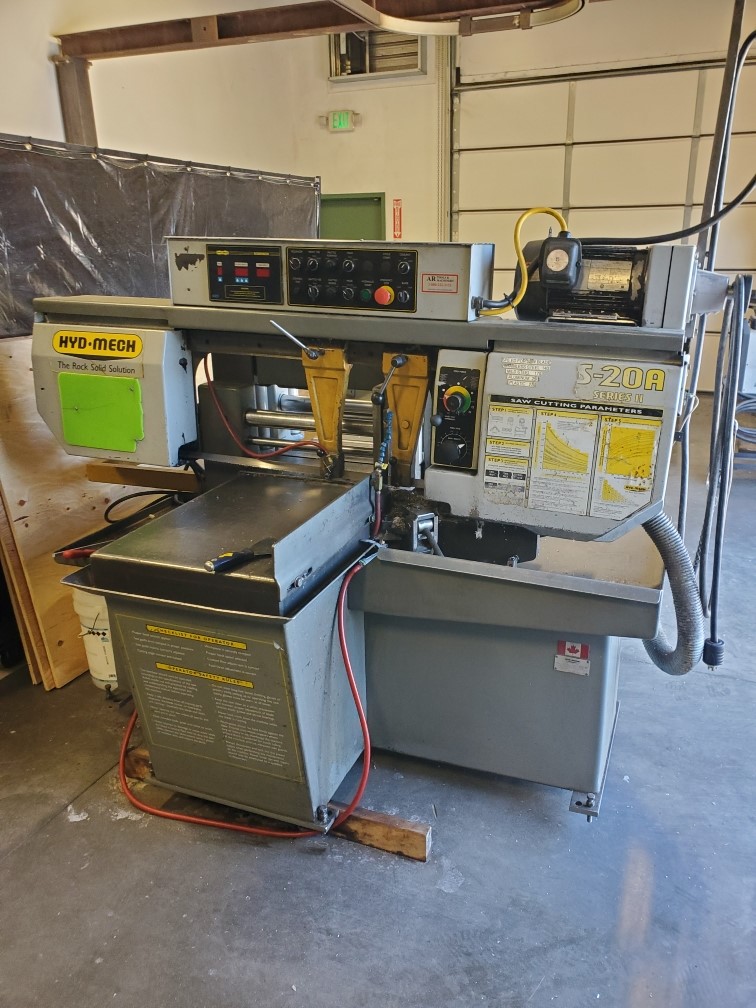

Hyd-Mech Model S-20A Automatic Horizontal Bandsaw 13" x 18" #6310

Hyd-Mech Model S-20A Automatic Horizontal Bandsaw 13" x 18" #6310

Pomona, CA

orCall 909-348-5610

Description

Hyd-Mech Model S-20A Automatic Horizontal Bandsaw 13" x 18" #6310


Capacity:

Rectangular:

@ 90°: 13″ x 18″

@ 45°: 13″ x 10 3/4″

@ 30°: 13″ x 7 3/4″

Round:

@ 90°: 13″

@ 45°: 12″

@ 30°: 8 1/2″

Blade Size: 14′ 10″ x 1″

Blade Speed (Variable): 75 – 330 SFM

Bar Feed Shuttle Stroke: 0- 29" (Multiple Indexing)

Coolant Tank Capacity: 12 Gallons

Work Load: 5,000 lbs.

Table Height: 31″

Motor: 3 HP / 240v / 3ph

Dimensions: 93″ x 86″ x 52″ H

Weight: Approx. 3,800 lbs.


Equipped With:

Bundling Attachment

Hydraulic Bar Feed With Multiple Indexing

Programmable Digital Control

Flood Coolant With Wash Down Hose

Blade Brush


STANDARD FEATURES:

Easy swing, heavy duty cast iron saw head that can swing up to 60° one direction

3 HP VFD. True direct blade drive – no belts/pulleys

Cast iron band wheels

Replaceable blade brush

Robust steel base

East-to-read angle scale with angle locking mechanism

Cast iron guide arms mounted on linear rails is adjustable for proper spacing

Full capacity, full stroke hydraulic material vises

Out of stock switch

Mechanical band tensioning with digital read out

Hydraulic positive down feed of sawing head

Pre-set, replaceable carbide guide inserts

Safety door interlocks

Variable vise pressure

Specifications

ManufacturerHydmech
ModelS-20A
Year2001
ConditionUsed
Serial Number80901186
Stock Number6310
