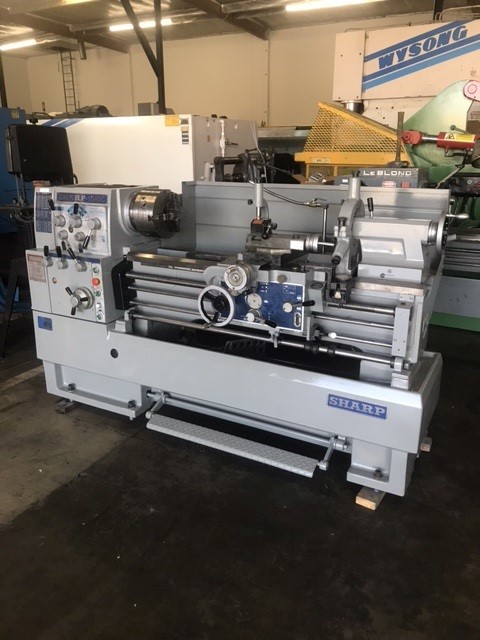

Sharp 1640C Engine Lathe 16"/24" X 40" #6299 #2

Sharp 1640C Engine Lathe 16"/24" X 40" #6299 #2

Swing Over Bed: 16"

Swing In Gap: 24"

Swing Over Cross Slide: 8.75"

Distance Between Centers: 40"

Spindle Speeds (12): 20-2,000 RPM

Spindle Nose: D1- 6

Hole Through Spindle: 2 1/4"

Cross Slide Travel: 8 1/2"

Feeds: 0.001 - .032 IPR

Threads:

Inch: 4- 56 TPI

Metric: 0.5- 7 MM

Tailstock Quill Taper: #4 MT

Tailstock Quill Travel: 5"

Motor: 7 1/2 HP

Approx. Shipping Weight:

4,000 Lbs.

Approx. Shipping Dimensions:

96″ L x 52″ W x 55″ H

Equipped With:

Buck Adjustable 3 Jaw Chuck

Face Plate

Trav-A-Dial On Carriage

Jacobs Collet Spin Fixture

Steady Rest

Follow Rest

KDK Tool Post

Splash Guard

Coolant System
