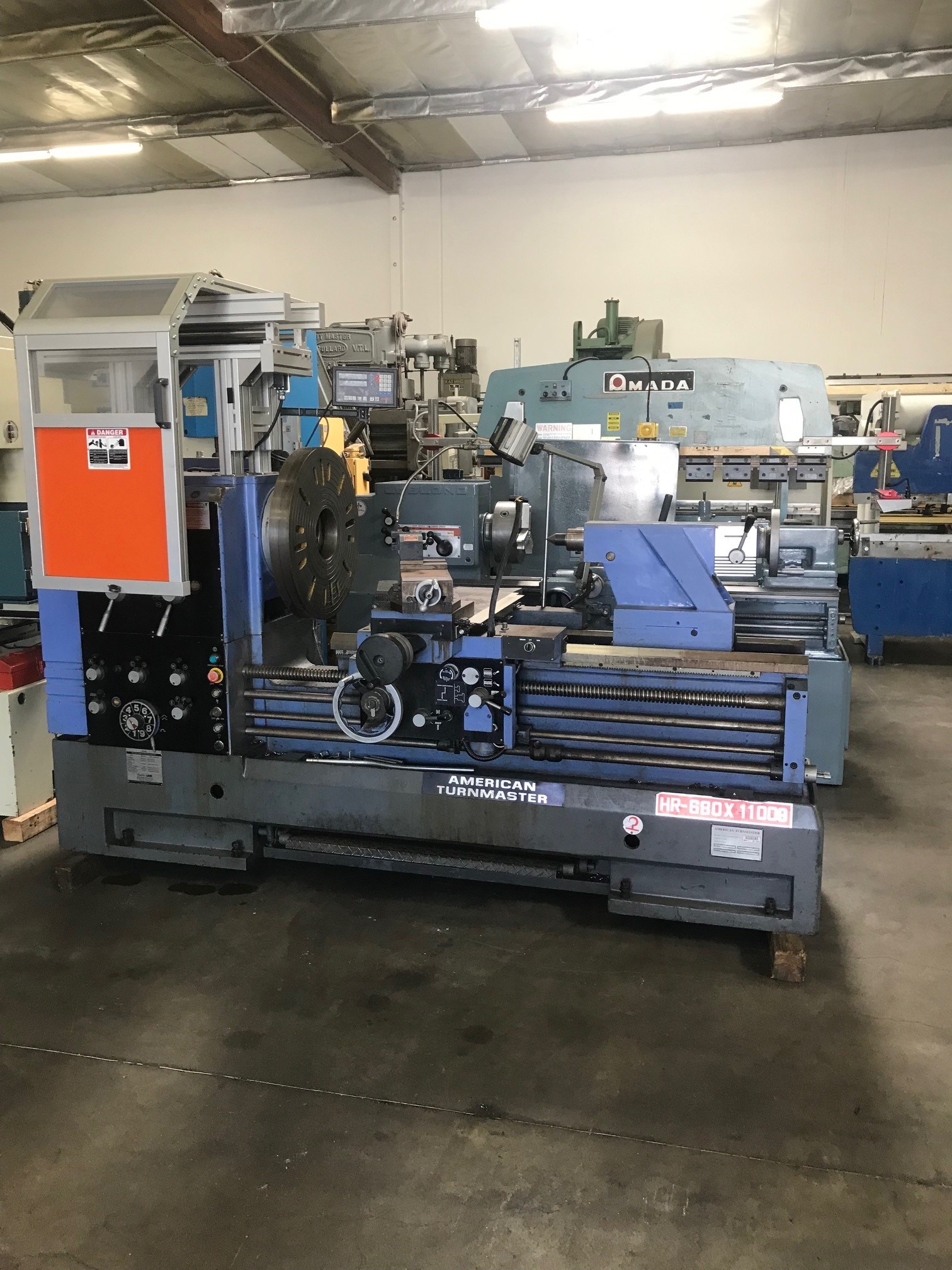

Lagun American Turnmaster Model HR-680X-1100G Engine Lathe 26 1/2"/34 1/2" x 40" (2009)#6210

Lagun American Turnmaster Model HR-680X-1100G Engine Lathe 26 1/2"/34 1/2" x 40" (2009)#6210

Pomona, CA

orCall 909-348-5610

Description

Swing Over Bed: 26 1/2"

Swing In Gap: 34 1/2"

Swing Over Cross Slide: 18"

Distance Between Centers: 40"

Spindle Speeds (8): 12- 1,000 RPM

Spindle Nose: D1- 8

Hole Through Spindle: 4 1/4"

Cross Slide Travel: 16 1/2"

Feeds: 0.05- 0.70 MM

Threads:

Inch: 2- 28 TPI

Metric: 0.8- 14 MM

Tailstock Quill Taper: 5 MT

Tailstock Quill Travel: 7"

Motor: 25/20 HP

Dimensions (L x W x H): 105" x 50" x 82"

Weight: 6,000 Lbs.


Equipped With:

Newall Topaz 2 Axis Digital Readout System

Face Plate

KDK Tool Post

Rapid Traverse On Carriage

2 Speed Tailstock

Coolant System

Work Light

Chuck Guard


Specifications

ManufacturerLagun American Turnmaster
ModelHR-680X-1100G
Year2009
ConditionUsed
Serial Number6809903-2009
Stock Number6210
