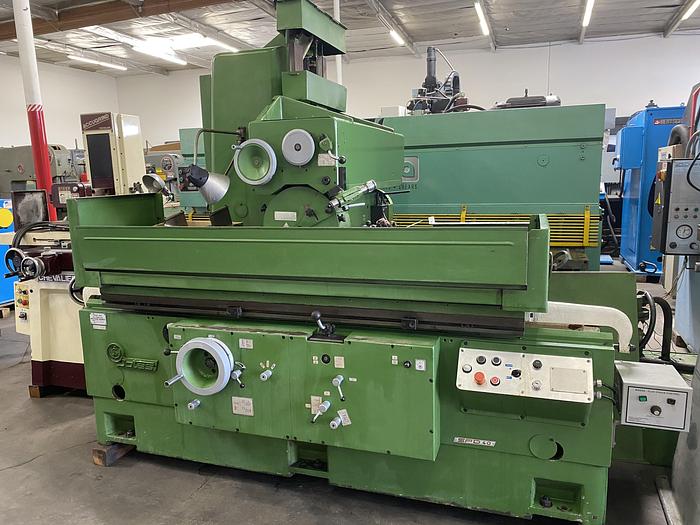

Jotes Model SPD 40 Hydraulic Surface Grinder 17" x 39" #6130

Jotes Model SPD 40 Hydraulic Surface Grinder 17" x 39" #6130

Pomona, CA

orCall 909-348-5610

Description

Jotes Model SPD 40 Hydraulic Surface Grinder

Serial # 212/1998


Specifications:

- table 450 x 1000 mm 17" x 39"

- max. Upright axis: 575 mm 22.6"

- min. Elevation of spindle axis: 125 mm 5"

- the smallest table pitch: 200 mm 7.87"

- table speed range: 2-30 m / min. 78-1100 ipm

- the highest grinding wheels: 470 mm 18.5"

- Adjustable continuous feed wheel: 0.5-4.5 m / min. 19.6-177 ipm

- adjustable stroke of the wheel: 3-30 mm 0.11" - 1.18"

- manual grinding wheel / 1 rev. Wheels: 8 mm 0.31"

- the largest vertical displacement of the wheel: 450 mm 17.71"

- highest vertical accuracy: 0.002 mm

- highest grinding depth / auto infeed: 0.02 mm

- the largest grinding allowance / auto infeed: 0.36 mm

- new wheel diameter: 350 mm 13.77"

- wheel width: 63 mm 2.48"

- hole diameter: 127 mm 5"

- diameter of discs grinding wheel: 197 mm 7.75"

- wheel speed: 26 m / s

- amount of hydraulic oil: 300 l

- installed power: 10 kW / 13.1 Hp

- machine dimensions: 3740 x 2080 x 2260 mm

- weight of the grinder: 4800 kg. / 10,750 lbs.

Specifications

ManufacturerJotes
ModelSPD 40
ConditionUsed
Serial Number212/1998
Stock Number6130
