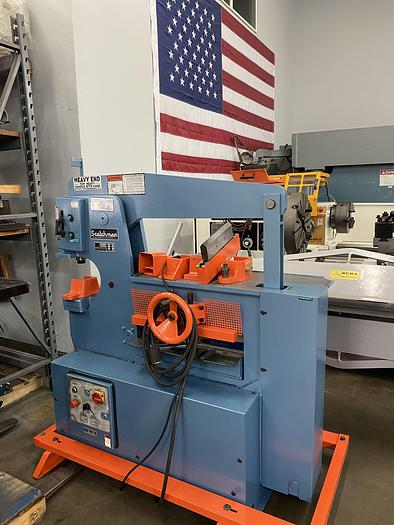

Scotchman 6509 Hydraulic Ironworke 65 Ton #6084 #1

Scotchman 6509 Hydraulic Ironworke 65 Ton #6084 #1

Punching Pressure: 65 Ton

Brake: 40 ton

Flat Bar Shear: 24" Length

Hydraulics: 2,600 PSI

Output Power 5 HP

Picker Tool: 1/2",3/4"&1"

Pipe Notcher: 3/4",1"

Rectangular Notcher: 2"x 2-1/2" x 3/8"

Round Rod Max: 1/4"to 1-1/4" 9 Cavity

Shear Angle: 90 Deg: 6"x 6" x 3/8"; 45 Deg: 3" x 3" x 3/8"

Special Tooling: 4" Maximum Diameter

Square Rod Max: 1/4"to 1" 1 Cavity

Square Tube Shear: 1/2" to 2",12 gauge

Stroke Per Minute Heavy: 17 SPM

Stroke Per Minute Light: 40 SPM

Throat Depth: 9"

V Notcher: 6"x 6" x 5/16"

Dimensions 60"L x 24"W x 66"H

Weight 2,750 Ibs.

Equipped With:

Brake Attachment

Electric Foot Pedal
