Sold

DoAll Model 2613-3 Vertical Band Saw 26" Throat #6055

SAWS, BAND, VERTICAL
Manufacturer:
DOALL
Model:
2613-3
Year:
1985
Stock #:
6055

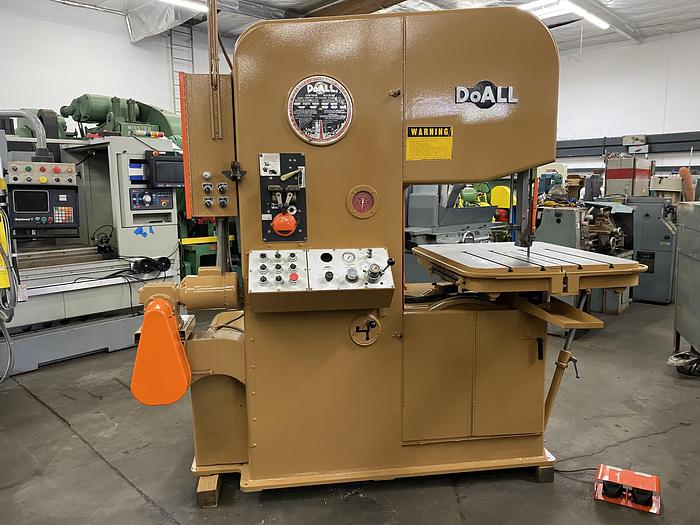

DOALL Model 2613-3 Vertical Band Saw, 1985. 26" throat, 13" max part height, variable blade speeds 55-10,000 FPM, table size 32" x 41" with tilts and hydraulic feed. Features blade shear, grinder, welder, 3-speed transmission, 7.5 HP motor. Wired for 3 Phase.

Specifications:26" DOALL VERTICAL BAND SAW

Model # 2613-3

Serial # 441-85104

New 1985

Specifications:

2-Wheel Design

Throat: 26"

Part Height: 13" Maximum

Blade Size: 1/8" to 1"

Table Feed Force: 0 to 600 Lbs.

Blade Speeds, Variable: 55 to 10,000 FPM

Table Size: 32" x 41" with (4) T-Slots

Table Tilts: 45 Degrees Right and 5 Degrees Left

Table Feed Stroke: 16"

Hydraulic Table Feed Rate: 0 to 8 FPM

Upper Wheel Adjustment: 3"

EQUIPPED WITH:

Has Blade Shear, Grinder and Welder

3-Speed Transmission

Hydraulic Tilting and Feed of Table

7-1/2 HP Main Motor

Wired for 3 Phase, 60 Cycle, 230-460 Volts

Overall Size: 87" L-R x 61" F-B x 87" H x 4,700 Lbs.
