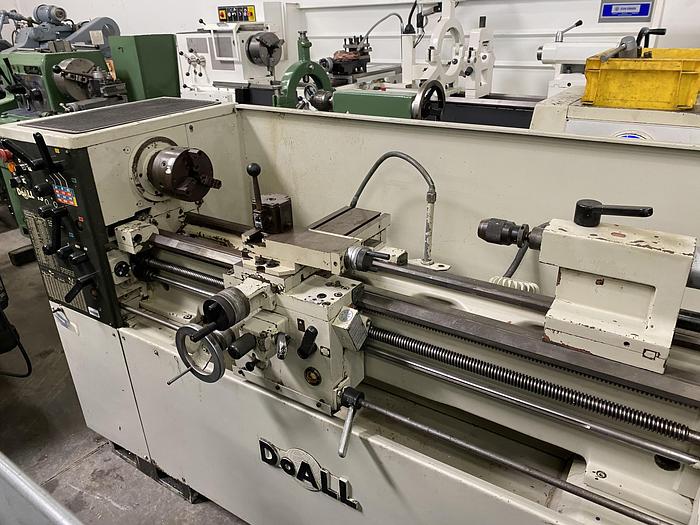

Doall Romi 13" x 40" Engine Lathe Model 13 #6029

Doall Romi 13" x 40" Engine Lathe Model 13 #6029

Pomona, CA

orCall 909-348-5610

Description

Manufacturer: DoAll

Model: 13 Engine Lathe

Serial # 23866


Swing Over Bed Ways: 13"

Swing Over Cross Slide: 7 1/2"

Spindle Bore Diameter: 1 9/16"

Spindle Speeds (12): 50 to 2500 Rpm

Inch Feeds (80): .0005 to .0287

Metric Feeds (80): .015 to .730

Threading, Inch (23): 4 to 36 TPI

Threading, Metric (31): .40 to 7.0

Threading, Mod (13): .30 to 1.75

Threading, DP (27): 16 to 120

Leadscrew Pitch: 4 TPI

Leadscrew Diameter: 1 1/2"

Bed Width: 8 3/4"

Bed Length: 60"

Tailstock Spindle Travel: 3 3/4"

Tailstock Spindle Diameter: 1 3/4"

Tailstock Spindle Taper: #3 MT

Approximate Overall Dimensions: 82" x 38" x 48"

Approximate Weight: 3,100 lbs.

Specifications

ManufacturerDoAll
ModelModel 13
ConditionUsed
Serial Number23866
Stock Number6029
