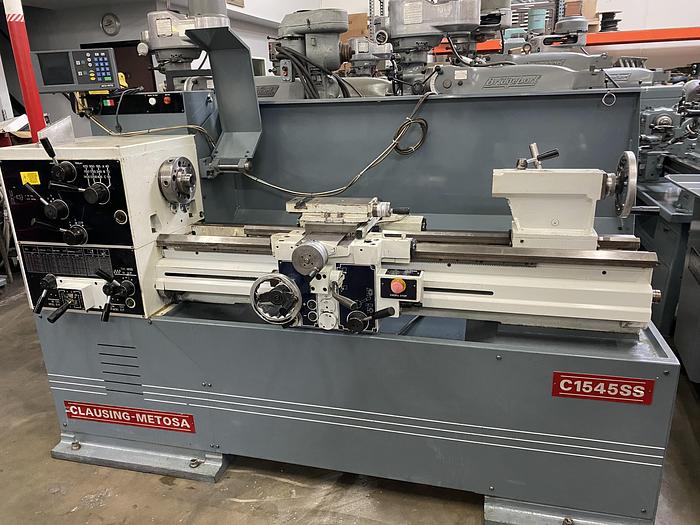

Clausing Metosa 15" x 45" Gap Bed Engine Lathe with Digital Readout C1545SS #6026

Clausing Metosa 15" x 45" Gap Bed Engine Lathe with Digital Readout C1545SS #6026

Pomona, CA

orCall 909-348-5610

Description

Make: Clausing Metosa

Model: C1545SS

Serial Number: 43447


SPECIFICATIONS:


SWING OVER BED........................ 15.75"

SWING INSIDE REMOVABLE GAP............ 23.62"

SWING OVER CROSS SLIDE................ 8.26"

SWING OVER CARRIAGE WINGS............. 14.57"

DISTANCE BETWEEN CENTERS ............. 45"

SPINDLE BORE.......................... 2.05"

SPINDLE NOSE.......................... D1-6"

SPINDLE TAPER......................... #4 MORSE

WIDTH OF BED ......................... 12"

SPINDLE SPEEDS (12) .................. 40 - 2200 RPM

LONGITUDINAL FEED RANGE (44) ......... 0.0018 - 0.0264 IPR

CROSS FEED RANGE (44)................. 0.0005 - 0.0076 IPR

THREADING RANGE ENGLISH (44) ......... 4 - 60 TPI

THREADING RANGE METRIC (44) .......... .5 - 7.5 MM

TAILSTOCK SPINDLE TRAVEL ............. 6"

TAILSTOCK SPINDLE TAPER .............. #4 MORSE

APPROXIMATE DIMENSIONS ............... 90"L x 40"W x 54"H

APPROXIMATE WEIGHT ................... 2,950 LBS


Equipped With:

Digital Read Out

8" Chuck

Tailstock

5c Collet Closer

Steady Rest



Specifications

ManufacturerClausing Metosa
ConditionUsed
Serial Number43447
Stock Number6026
