2004 HAAS VF-3B 4-AXIS CNC VERTICAL MACHINING CENTER #6009

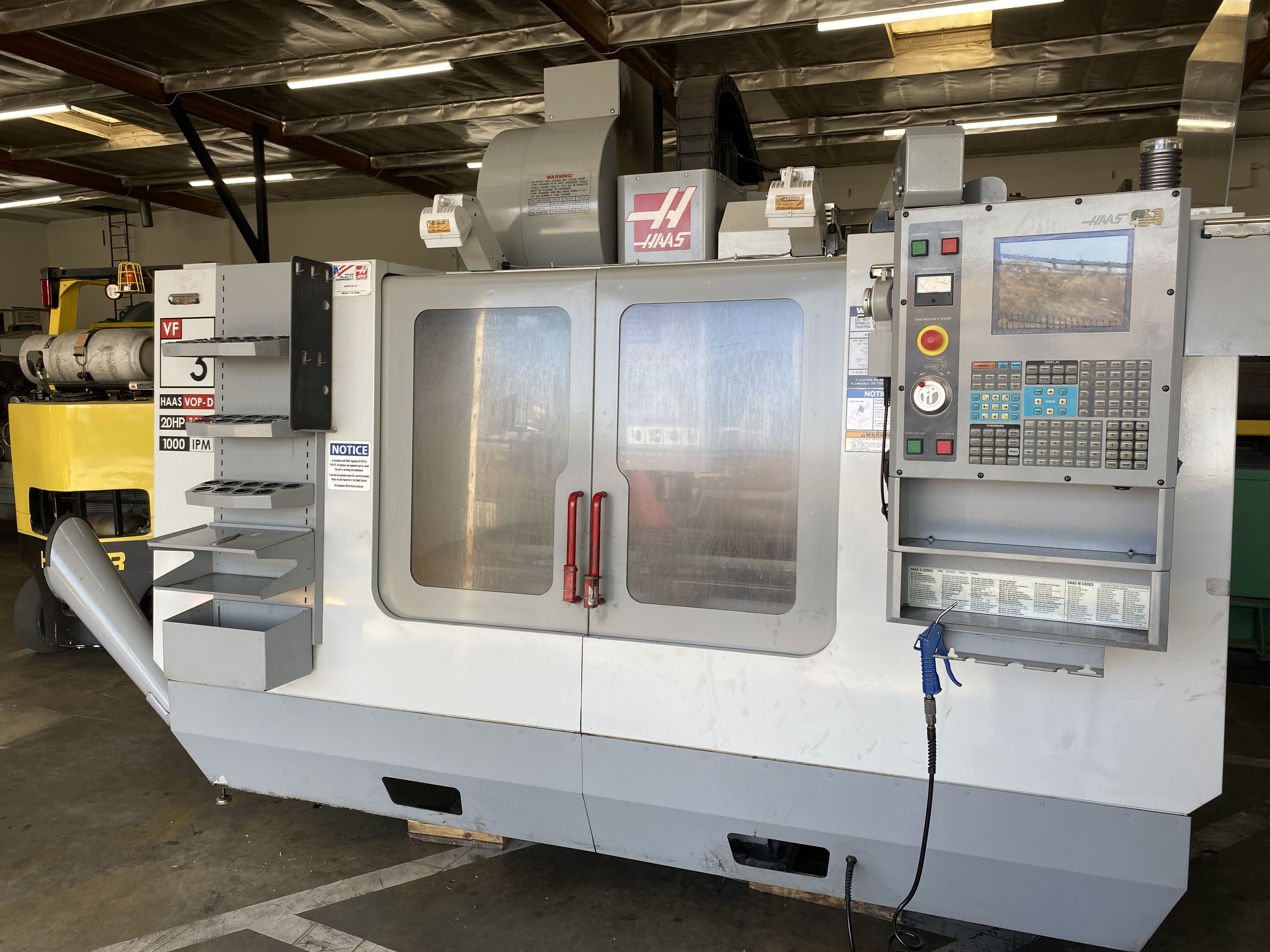

2004 HAAS VF-3B 4-AXIS CNC VERTICAL MACHINING CENTER

Recently removed from local shop whose owner has decided to retire. Machine is in great condition and was well cared for. Was being used with a Haas 4th axis. The 4th axis rotary was sold to another party but machine still has the drive and wiring. Available for inspection under power by appointment.

Specifications:

Control .................................................................................................................. Haas

Table Size ....................................................................................................... 48" x 18"

Max Table Load ............................................................................................... 3,500 lbs

X-Axis Travel ........................................................................................................... 40"

Y-Axis Travel ........................................................................................................... 20"

Z-Axis Travel ............................................................................................................ 25"

Spindle Taper ........................................................................................................ CT 40

Spindle Motor......... .............................................................................................. 20 HP

Spindle Speed .............................................................................................. 7,500 RPM

Approx Dimensions: 118″ x 98″ x 100″ High

Machine Weight ............................................................................................. 12,500 lbs

Equipped With:

Hand Wheel

24-Station Side Mounted ATC

CAT-40 Spindle 7500 RPM

Haas VOP-D

20Hp 2-Speed Gear Drive

1000 IPM

Rigid Tapping

Coordinate Rotation and Scaling

M19 Spindle Orientation

Macros

Quick Code

Chip Auger

20-Position Coolant Spigot

18" x 48" Table

Coolant
