Leblond Servo Shift 12C15 Engine Lathe Inch/Metric 15" x 54" #5989 #1

LATHES, ENGINE
Manufacturer:
LEBLOND
Model:
SERVO SHIFT 16"
Stock #:
5989

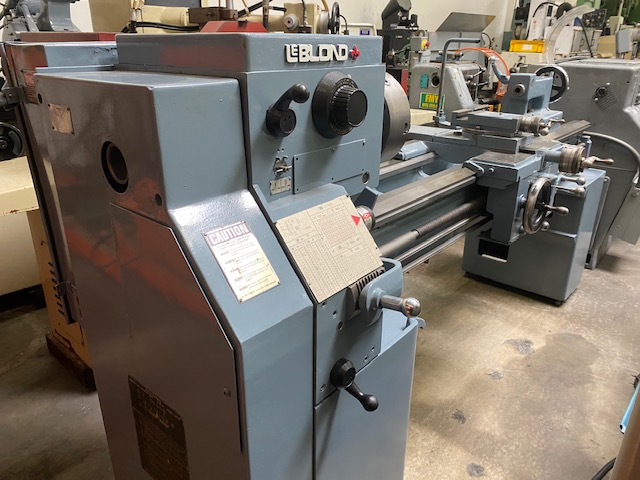

Leblond Servo Shift 12C15 Engine Lathe Inch/Metric 15" x 54", used condition. Swing over bed: 15", spindle speeds: 45-1,800 RPM, motor: 5 HP, weight: 3,000 lbs. Includes 3 jaw chuck and inch metric threading but no chip pan or hard jaw for BTC chuck.

Leblond Servo Shift 12C15 Engine Lathe Inch/Metric 15" x 54" #5989 #1

Swing Over Bed: 15"

Swing Over Cross Slide: 9 1/2"

Distance Between Centers: 54"

Spindle Speeds (12) 45-1,800 RPM

Spindle Nose: D1- 6

Hole Through Spindle: 2"

Cross Slide Travel: 7 7/8"

Feeds: 0.0018 - .104 IPR

Threads:

Inch: 2 - 112 TPI

Metric: 0.25- 14 MM

Tailstock Quill Taper: #3 MT

Tailstock Quill Travel: 5"

Motor: 5 HP

Weight: 3,000 Lbs.

Equipped With:

3 Jaw Chuck

Inch Metric Threading

Please note: Did not get chip pan or hard jaw for the BTC chuck.
