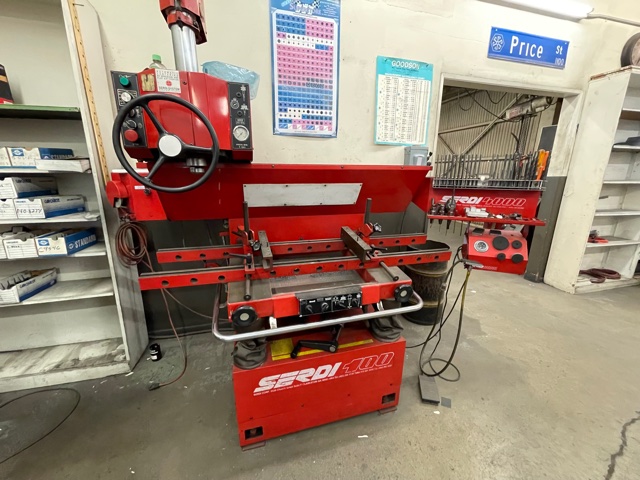

Serdi 100 Valve Guide and Seat Machine #5984

Recently purchased from small shop. . Also from same shop, we have other listings with Serdi, Van Norman, Ammco, Axe machines and others.

Serdi Model 100

Serial # 1162

Year: 1989

Max. Measurements of the Work Piece

    • Length: unlimited

    • Height: 20"

    • Width: 23.5"

• Machining Capacity:

    • Seat Diameter: from Ø 0.7" to 4"3/4

• Head Movement:

    • Axe X: 40"

    • Axe Y: 2"

• Spindle Travel:

    • 7"3/4

• Table Inclination Angle:

    • 30°

• Pneumatic:

    • Air Pressure: 86 Psi

    • Air Volume: 635 cu.ft/h

• Spindle Rotation:

    • Min: 50 RPM

    • Max: 700 RPM

• Spindle Torque:

    • Constant Torque of 1.5 lb/ft at 100 RPM to 600 RPM

• Electrical Power:

    • 2KW

• Mains Connection:

    • 220 - 240 V 1PH

    • 50 or 609 Hz

• Working Space:

    • Length: 95"

    • Width: 60"

• Shipping Weight:

    • 3135 lbs

• Max. Measurements of the Machine:

    • Height: 84"

    • Width: 46"

    • Length: 79"
