Sold

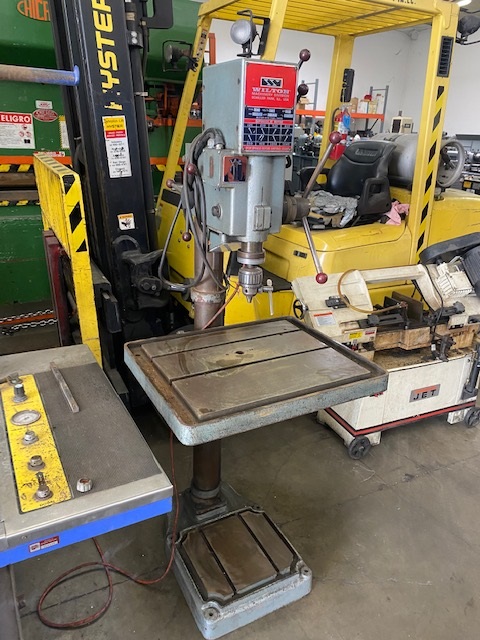

Wilton 20600 Geared Head 20" Drill Press #5980

DRILLS, HEAVY DUTY & SENSITIVE, VERTICAL, SINGLE SPINDLE
Manufacturer:
WILTON
Model:
20600
Stock #:
5980
Wilton 20600 Geared Head 20" Drill Press. Heavy-duty vertical spindle drill in used condition. Features: 1-3/8" capacity in cast iron, 20" drill to center, spindle speeds 120-1640 RPM, 1/1.2 HP motor, and 230V/3PH electrical. Approx. weight: 600 lbs.

Brand: Wilton

Model: 20600

Serial #: 26622

Approx. Shipping Weight: 600 Lbs.

Approx. Shipping Dimensions: 48″ L x 48″ W x 80″ H

Specifications:

Drill to Center of Circle: 20″

Capacity, Cast Iron: 1-3/8″

Column Diameter: 3-15/16″

Quill Diameter: 2-7/16″

Overall Table Size: 18″ x 25″

Working Surface og Table: 15-1/4″ x 21″

Max Distance, Spindle to Table: 33-3/8″

Working Surface of T-Slotted Base: 17″ x 15-3/4″

Max Distance, Spindle to Base: 44-7/8″

Spindle Travel: 5-1/4″

Spindle Taper: #3MT

Geared Spindle Speeds in Two Ranges (8): 120 – 1640 RPM

Motor HP: 1 / 1.2

Motor RPM: 1700 / 3400

Electrical: 230V / 3PH
