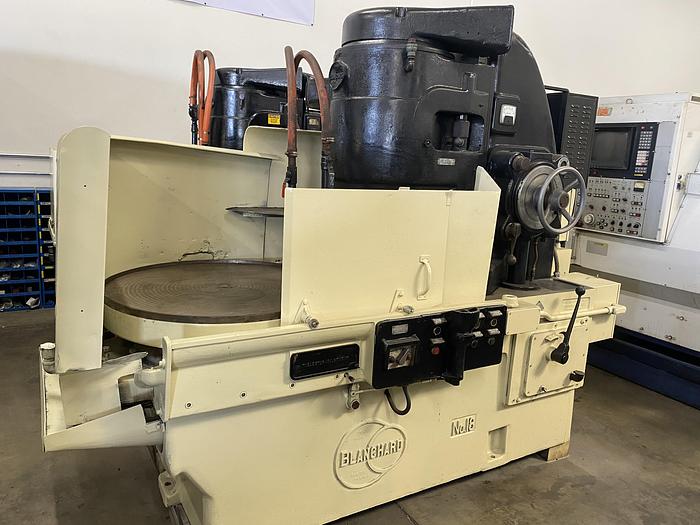

BLANCHARD Model 18-36 Rotary Surface Grinder 36" x 18" #5940 #2

BLANCHARD Model 18-36 Rotary Surface Grinder 36" x 18" #5940 #2

  Serial # 7494

EQUIPPED WITH:

Vertical-Spindle Machine Design

36" Diameter Magnetic Chuck

Cylindrical Grinding Wheel

Coolant System (Built-In)

CATALOGUE SPECIFICATIONS:

Magnetic Chuck, Diameter           36"

Magnetic Chuck Work Load Capacity   3000 LBS

Height Under Grinding Wheel, Maximum       12"

Grinding Wheel Diameter, Maximum    18"

Grinding Wheel Speeds, Range            720 RPM

(6) Chuck Speeds, Range                      6 to 33 RPM

Power Down Feeds, Range                   .004 to .080 IPM

Spindle Motor, Horsepower          35 HP

Electrical System                           220-440/3/60

Overall Dimensions, W x D           9'4" x 5'5"

Weight, Approximately                            12900 LBS
