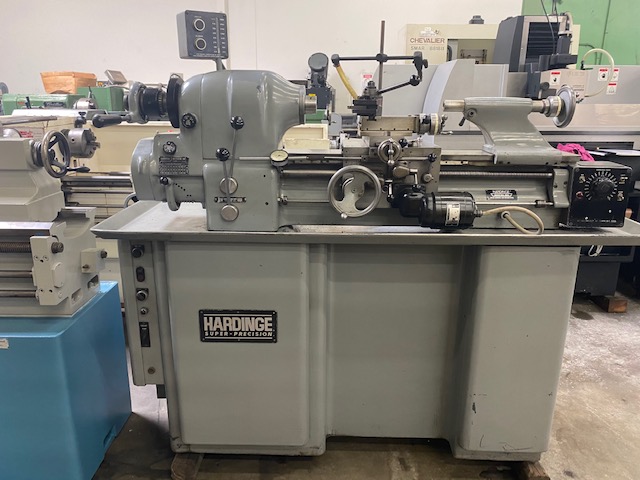

Hardinge HLV Toolroom Lathe #5919
Hardinge HLV Toolroom Lathe #5919
Pomona, CA
Description
Manufacturer: Hardinge
Model: HLV Toolroom Lathe. Older model that predates HLV-H models. Bed width is 4 7/8". Runs good, see videos. 3 phase, 440 volt.
Specifications:
Spindle Capacity:
Round 5C Collets..................1-1/16"
Hexagon 5C Collets................7/8"
Square 5C Collets.................3/4"
Step Chuck........................6"
Jaw Chuck.........................5"
Expanding Collets.................3"
Swing Over Bed....................11"
Swing Over Cross Slide............9"
Distance Between Centers..........18"
Spindle Bore......................1-1/4"
Spindle Speeds....................125 - 3,000 RPM (Variable)
Carriage Feed Range...............5/16 - 7 IPM
Cross Slide Feed Range............3/16 - 4 IPM
Compound Travel...................3"
Cross Slide Travel................5-1/2"
Inch Threading....................(36) 11 - 108 TPI
Metric Threading..................(35) 0.4375 - 2.7 mm
Electrics.........................440v, 3ph
Dimensions........................72" x 29" x 66", 2,500 Lbs
Specifications
Manufacturer | Hardinge |
Model | HLV |
Condition | Used |
Serial Number | na |
Stock Number | 5919 |
