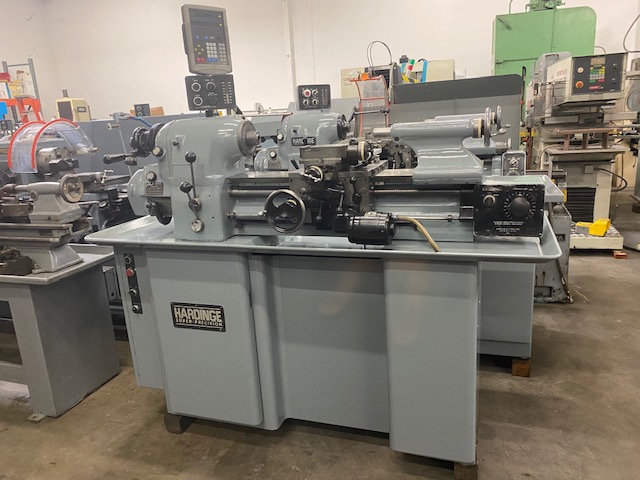

Hardinge HLV-H Toolroom Lathe #5915 Newall C80 Dro

Hardinge HLV-H Toolroom Lathe #5915 Newall C80 Dro

Pomona, CA

orCall 909-348-5610

Description

Manufacturer: Hardinge

Model: HLV-H Toolroom Lathe


Specifications:

Spindle Capacity:

Round 5C Collets..................1-1/16"

Hexagon 5C Collets................7/8"

Square 5C Collets.................3/4"

Step Chuck........................6"

Jaw Chuck.........................5"

Expanding Collets.................3"


Swing Over Bed....................11"

Swing Over Cross Slide............9"

Distance Between Centers..........18"

Spindle Bore......................1-1/4"

Spindle Speeds....................125 - 3,000 RPM (Variable)

Carriage Feed Range...............5/16 - 7 IPM

Cross Slide Feed Range............3/16 - 4 IPM

Compound Travel...................3"

Cross Slide Travel................5-1/2"

Inch Threading....................(36) 11 - 108 TPI

Metric Threading..................(35) 0.4375 - 2.7 mm

Electrics.........................220v, 3ph

Dimensions........................72" x 29" x 66", 2,500 Lbs

Specifications

ManufacturerHardinge
ModelHLV-H
ConditionUsed
Stock Number5915
