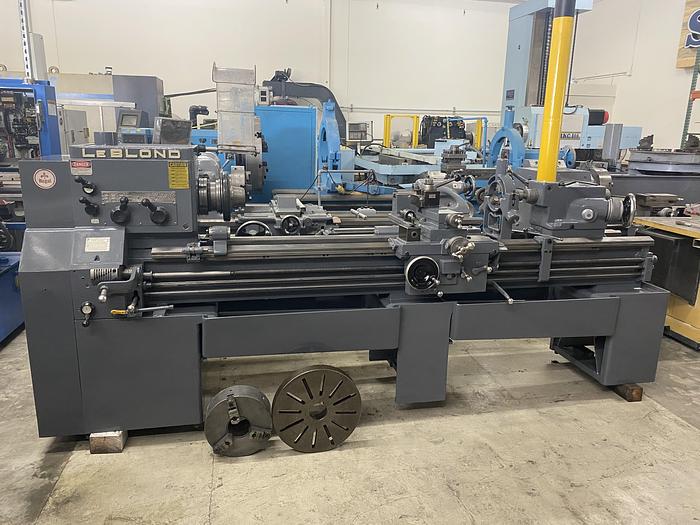

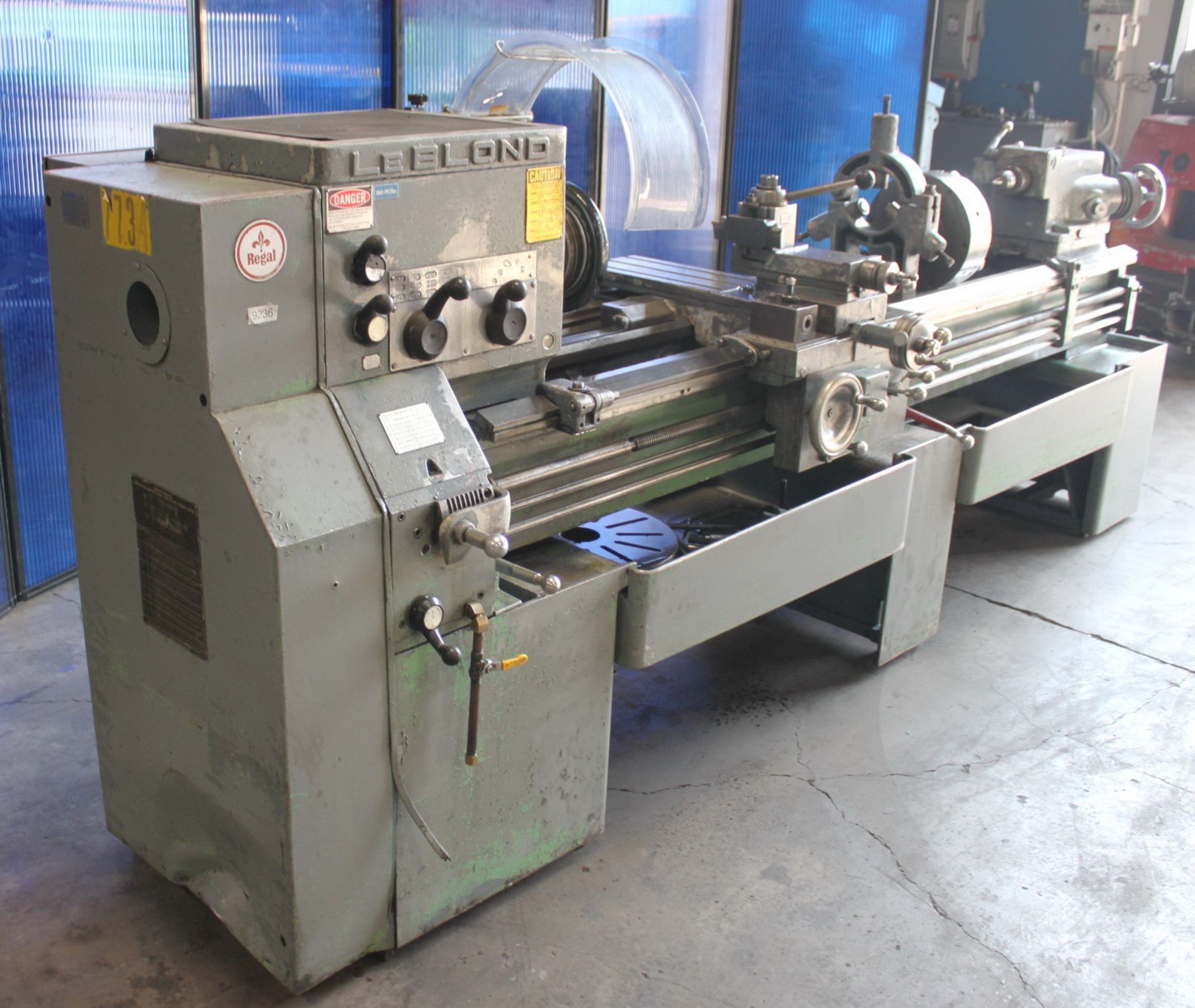

Leblond Regal Engine Lathe 19" x 78" #5909

Leblond Regal Engine Lathe 19" x 78" #5909

Pomona, CA

orCall 909-348-5610

Description

Leblond Regal Engine Lathe 19" x 78"


Model: Regal 19E

Manufacturer: LeBlond

Serial #: 8E3000


Specifications

Swing Over Bed: 19"

Swing Over Cross Slide: 12 1/4"

Distance Between Centers: 78"

Spindle Speeds : 40- 1,600 RPM

Spindle Nose: L- 1

Hole Thru Spindle: 1.75"

Threads- Inch: 2- 112 TPI

Feeds : 0.0018"- 0.104"

Cross Slide Travel: 11"

Tailstock Quill Travel: 7"

Tailstock Quill Taper: #4 MT

Dimensions (L x W x H): 130" x 50" x 60"

Weight: 6,000 Lbs.


Equipped with

3 Jaw Chuck

Taper Attachment

Steady Rest

Face Plate

Collet Spin Spindle Fixture

Tool Post

Horsepower: 10

Specifications

ManufacturerLeblond
ConditionUsed
Serial Number8E3000
Stock Number5909
