Sold

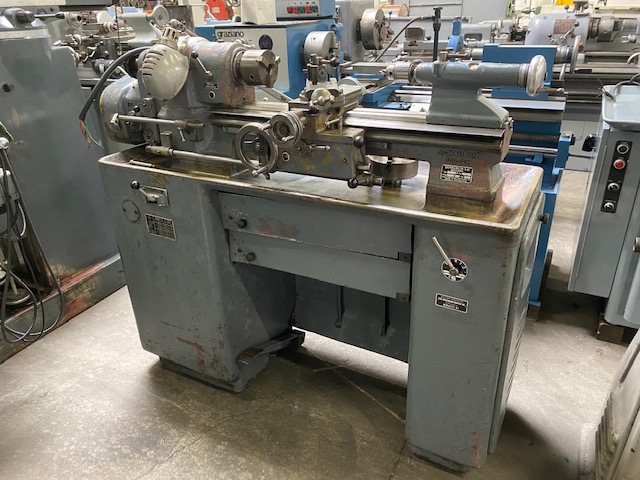

1957 Schaublin Model 102-VM Tool Room Lathe #5887

LATHES, PRECISION, JEWELERS, TOOLROOM, Etc.
Manufacturer:
SCHAUBLIN
Model:
102UM
Year:
1957
Stock #:
5887
1957 Schaublin Model 102-VM Tool Room Lathe for sale. Precision lathe features a W25 headstock, tailstock with MK2 adaptor, and a two-speed motor. Offers speeds from 40 to 3000 RPM. Complete with massive cast iron stand and all 26 gearbox gears. 3 phase, 220V.

Centres

Height: 102 mm, Distance between: 450 mm

Speeds

from 40 (with reduction gear) to 3000 RPM

Motor

Two speed motor with a foot operated clutch and brake and a knee operated direction lever

Headstock

W25, back geared, lever operated quick-closing attachment

Tailstock

W25 with MK2 Adaptor

Gear box

Two mechanism: one for power feed, one for screw cutting. All 26 pieces of the gears present

Massive cast iron stand with chiptray and two drawers

Weight

about 650 kg net

3 phase, 220 Volt
