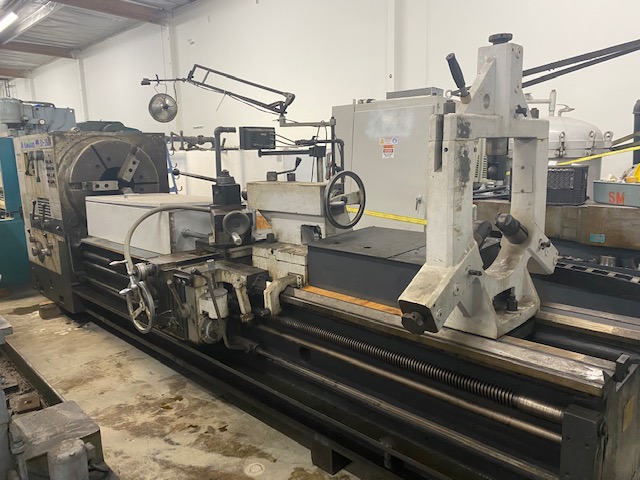

Vanguard Model S1-262A/3000 35" x 118" Hollow Spindle Lathe 14" Hole Spindle Thru #5884

Vanguard Model S1-262A/3000 35" x 118" Hollow Spindle Lathe 14" Hole Spindle Thru #5884

Pomona, CA

orCall 909-348-5610

Description

Used Vanguard Model S1-262A/3000 Hollow Spindle Lathe


CAPACITY

Swing Over Bed: 35"

Swing Over Cross Slide: 24"

Spindle Center To Floor: 45"

Distance Between Centers: 118"

Maximum Turning Length: 118"

Bed Width: 27-3/4"

HEADSTOCK

Spindle Speeds: (12) 7 to 305 RPM

Spindle Bore: 14"

Spindle Nose: A1-20

Spindle Motor: 25 HP

THREADS AND FEEDS

Threads Per Inch: (26) 1/2 to 28 TPI

Metric Threads: (22) 1 to 15 mm

Module Threads: (21) .5 to 7.5

Diametral Threads: (20) 2 to 28 TPI

Longitudinal Feeds: (32) ,003 to .56 IPR

Cross Feeds: (32) .003 to .56 IPR

Leadscrew Diameter-Pitch: 2.2" - 2 TPI

Longitudinal Rapid Travers: 157 IPM

COMPOUND

Compound Slide Swivel Angle: 90 Degrees

Cross Slide Travel: 12"

Compound Slide Travel: 8"

Cross Slide Width: 13"


Approximate Weight: 25,000 Lbs.

Specifications

ManufacturerVanguard
ModelS1-262A / 3000
Year2008
ConditionUsed
Serial NumberA50800032
Stock Number5884
